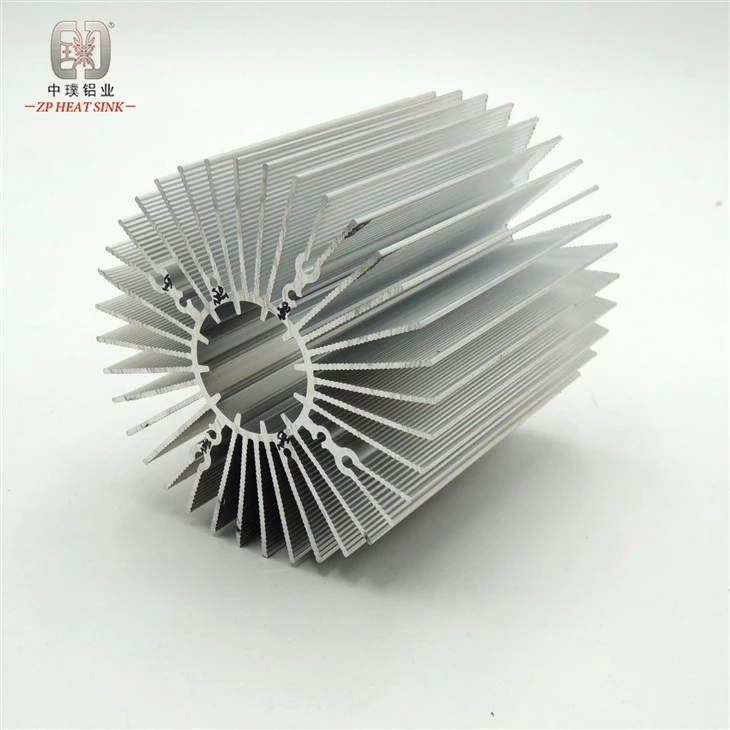

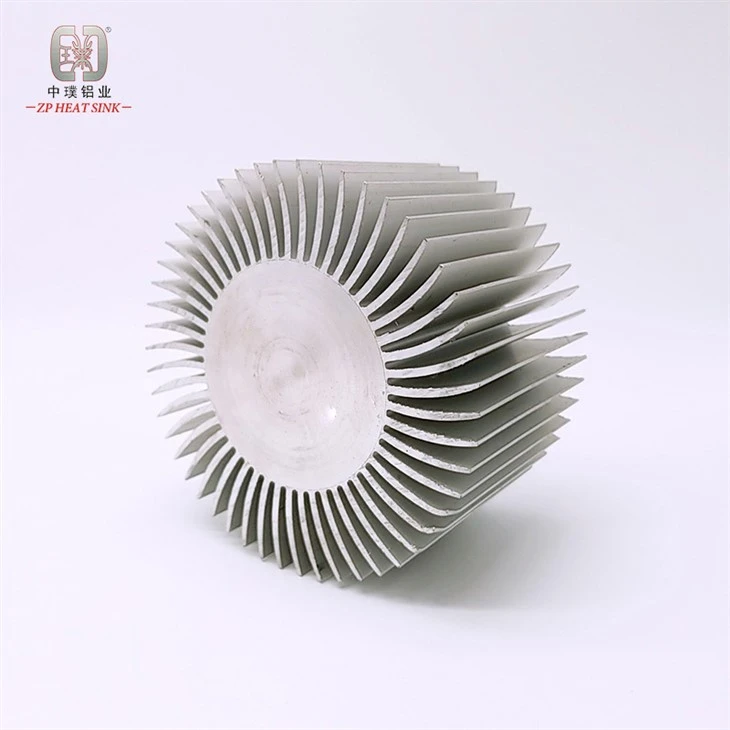

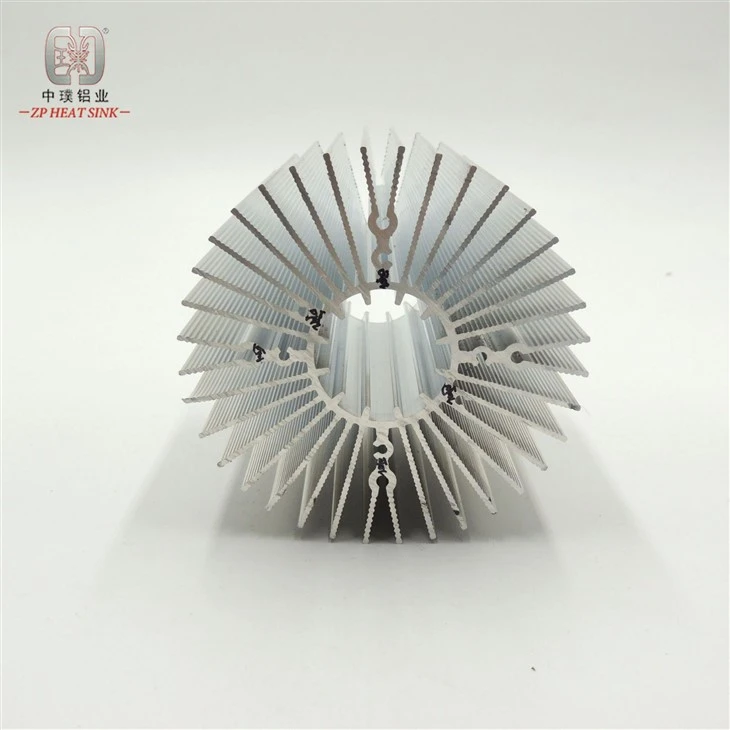

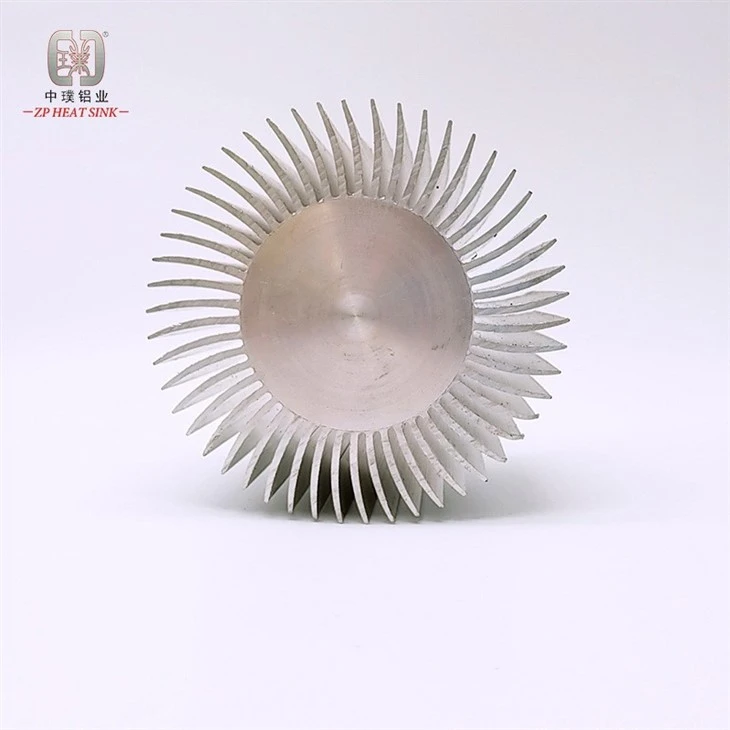

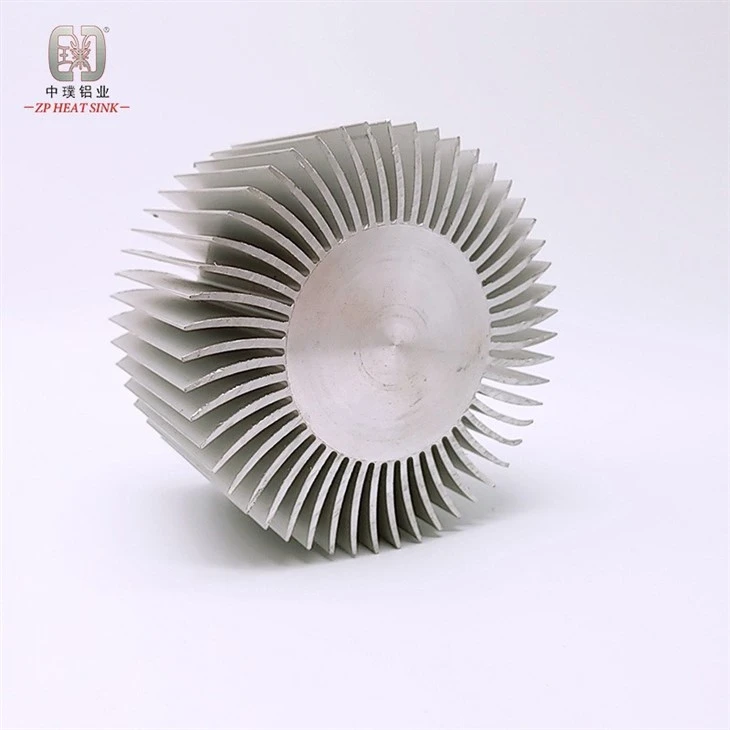

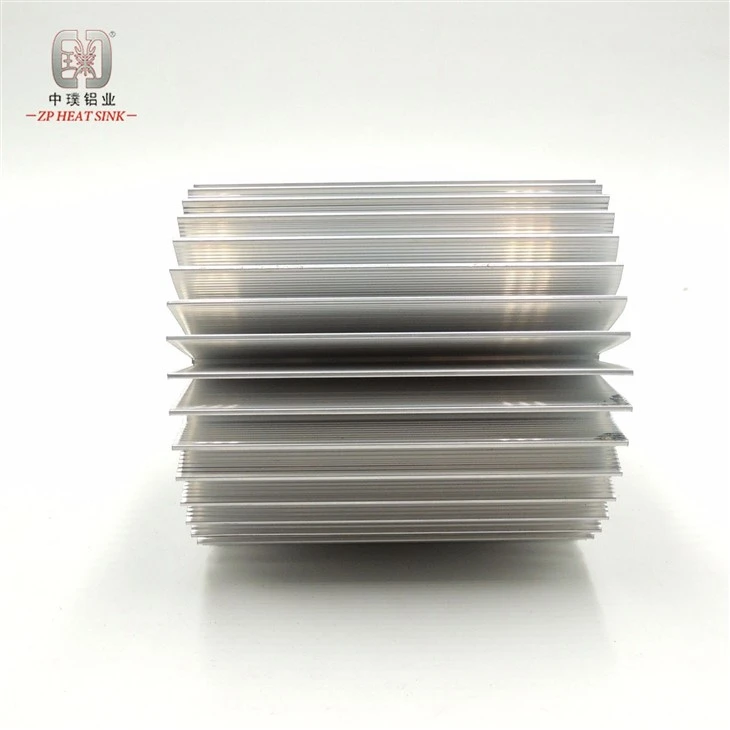

Precision Round Aluminum Heat Sinks
Specializing in custom round aluminum heat sink solutions, we overcome the thermal challenges of cylindrical spaces and rotational components. Unlike standard square profiles, our circular heat sinks maximize surface area within diameter constraints using optimized radial fin designs. We combine advanced die-casting, CNC machining, and bonding techniques to deliver rotationally symmetric thermal management for motors, LED arrays, and high-density electronics where space efficiency is critical.
- Product Introduction
Precision Round Aluminum Heat Sinks
Engineered Cooling for Compact & High-Performance Systems
Products Description
Specializing in custom round aluminum heat sink solutions, we overcome the thermal challenges of cylindrical spaces and rotational components. Unlike standard square profiles, our circular heat sinks maximize surface area within diameter constraints using optimized radial fin designs. We combine advanced die-casting, CNC machining, and bonding techniques to deliver rotationally symmetric thermal management for motors, LED arrays, and high-density electronics where space efficiency is critical.
Products Specification( Capabilities Overview)
| Base Material | A360 Die-Cast Aluminum, 6061-T6 Billet (High strength-to-weight ratio) |
| Standard Diameters | 20mm – 300mm (Custom diameters beyond range available) |
| Fin Configuration | Radial Fins (8–60 fins/sink) Spiral/Helical Fin Designs (Enhanced convective cooling) Integrated Base Plates (1.5mm–15mm thickness) |
| Tolerance Control | Concentricity: ±0.03mm Base Flatness: ≤0.05mm/mm |
| Surface Treatments | Type II/III Anodizing (20–25μm thickness) Hard Coat Anodizing (Up to 60μm for abrasion resistance) Electroless Nickel Plating (EMI/RF shielding) |
| Thermal Enhancements | Grooves for Heat Pipes/O-Rings Threaded Inserts for Secure Mounting Custom Interface Lapping |
Key Features of Our Round Aluminum Heat Sinks
1. Space-Optimized Thermal Density: Radial fin arrays increase surface area by 40–60% vs. comparable square profiles in cylindrical volumes.
2. Directional Airflow Management: Helical fin designs create natural convective currents without external fans (Ideal for sealed enclosures).
3. Vibration-Resistant Architecture: Monolithic construction prevents fin separation in high-RPM applications (tested to 15,000 RPM).
4. Component-Integrated Mounting: CNC-machined cavities for direct attachment to motors, sensors, or cylindrical housings.
5. Lightweighting Expertise: Topology-optimized designs reduce mass by 25%+ without compromising thermal performance.
6. IP67 Sealing Compatibility: Precision-machined grooves for reliable o-ring integration in harsh environments.
Critical Applications for Round Aluminum Cooling Solutions
Our cylindrical heat sink profiles solve thermal bottlenecks in:
1. Motor & Drivetrain Cooling: BLDC motors, servo actuators, e-bike hubs (sintered heat pipe integration available)
2. High-Density LED Systems: Stage lighting, surgical luminaires, automotive headlights (reflector-integrated designs)
3. RF & Power Amplifiers: 5G base station PAs, radar circulators (EMI-shielded versions)
4. Lab/Medical Equipment: Centrifuge cooling, analytical instrument modules (cleanroom-compliant finishes)
5. Robotics Joint Thermal Management: Robotic arm actuators, rotary unions (low-profile designs)
6. Aerospace Avionics: Cylindrical module cooling (AS9100-compliant documentation)
Why Partner With Us for Your Round Heat Sink Requirements?
When off-the-square solutions compromise your design:
1. Geometry-Specific Expertise: 70% of our projects involve non-rectilinear thermal solutions – circular aluminum heat sinks are our specialty.
2. Advanced Hybrid Manufacturing: Combine die-casting (high volume) with CNC machining (precision features) + bonding (complex assemblies).
3. In-House Testing Validation:
Thermal impedance testing (θJA under forced/natural convection)
Vibration resonance analysis (per MIL-STD-810G)
Salt spray testing (500+ hours for marine/auto grades)
4. No-MOQ Prototyping: Functional prototypes in 10–12 days with full performance data.
5. Total Cost Engineering: Design optimizations that reduce machining time by 30–50% vs. standard billet approaches.
6. Lifecycle Support: From concept CAD to end-of-life replacement inventory management.
7. Supply Chain Certifications: ITAR registered, REACH/RoHS compliant, conflict-free mineral sourcing.
Request Your Round Heat Sink Consultation Today
[1] I need thermal modeling for a cylindrical assembly
[2] Send me design guidelines for round heat sinks
[3] Quote a custom diameter heat sink prototype
Via www.zp-aluminium.com/contact-us or email technical drawings to general@zp-aluminum.com to start the first step of your Custom Aluminum Heatsinks project.
