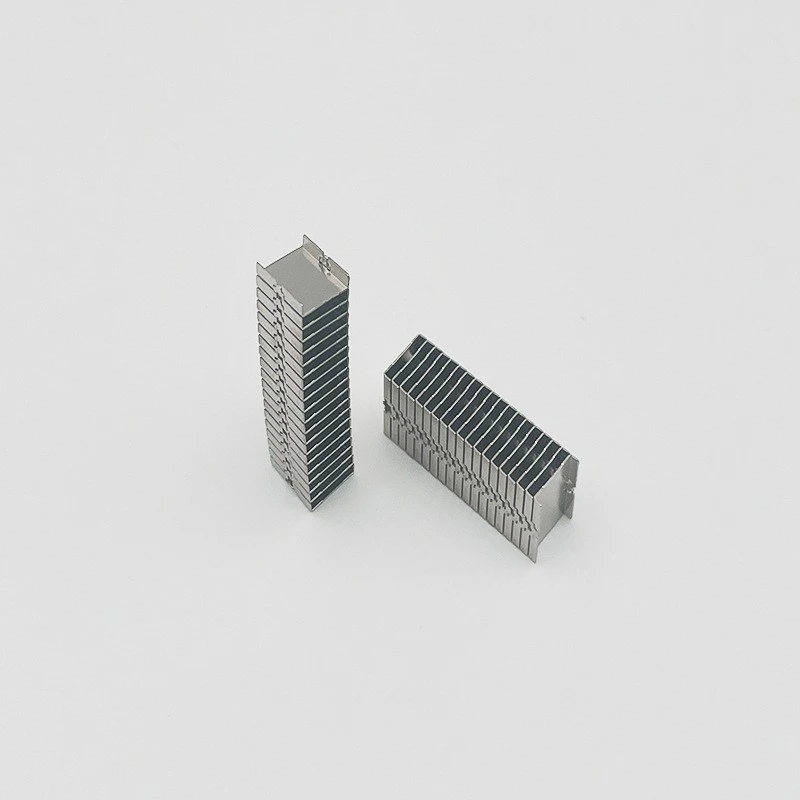

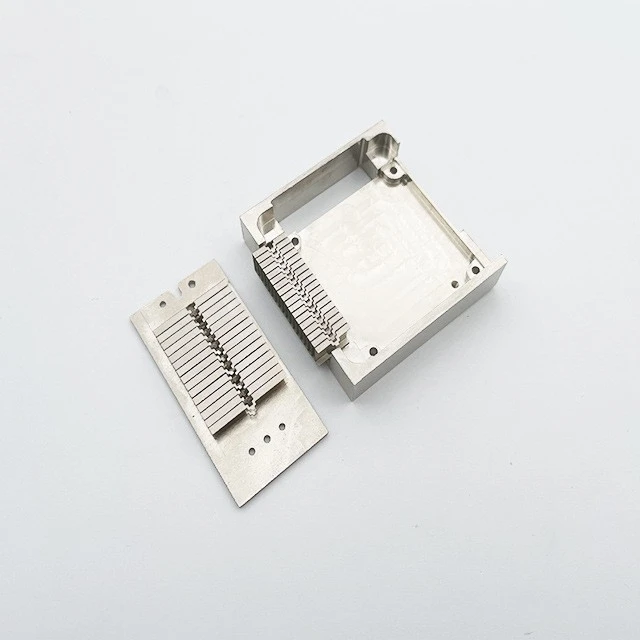

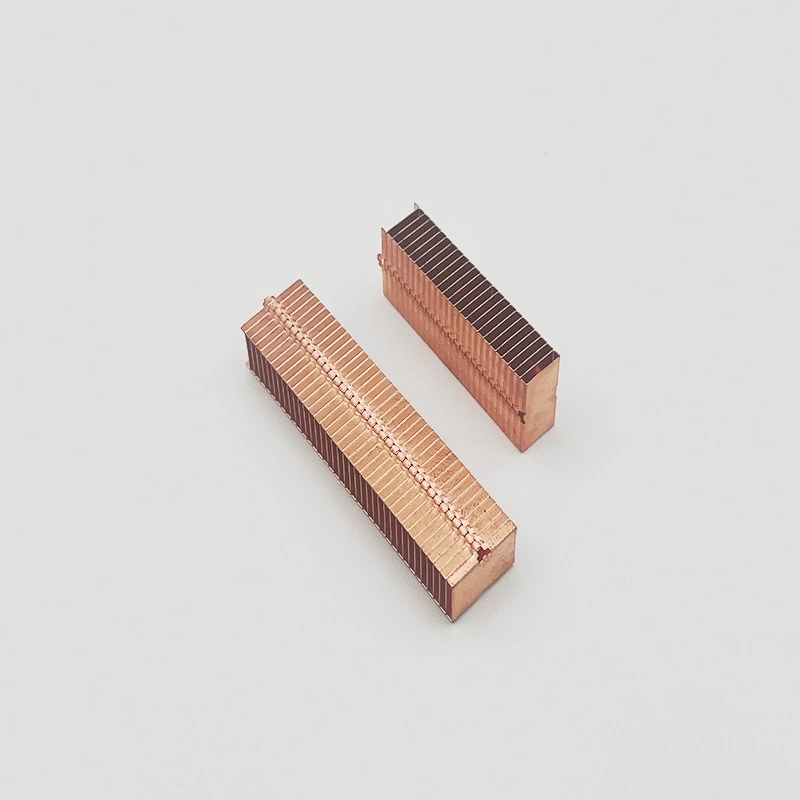

C1100 Copper Fin Aluminum Heatsink - Nickel Plated, Tin Soldered, Origin Factory Quality Assured

As an origin factory with 20+ years of experience in thermal management manufacturing, we are committed to providing high-reliability copper-aluminum composite heatsinks for global B2B clients, including electronic device manufacturers, automotive component suppliers, precision instrument producers, and industrial equipment integrators.



Our C1100 Copper Fin Aluminum Heatsink integrates premium C1100 red copper fins with high-quality aluminum substrate, combined with professional nickel plating and tin soldering processes, delivering an optimal balance of thermal performance, cost-effectiveness, and durability.



What makes us stand out is our strict quality control system from raw material procurement to finished product delivery, as well as our mature nickel plating and tin soldering technologies that ensure stable product performance and seamless assembly. As the direct production factory, we eliminate intermediate links, offer competitive ex-factory prices, and provide flexible customization services, making us the preferred partner for global





Our C1100 Copper Fin Aluminum Heatsink is a high-performance composite thermal management component, innovatively combining C1100 red copper fins (for superior heat transfer) with aluminum substrate (for lightweight and cost-effectiveness), tailored for electronic devices requiring efficient heat dissipation and reliable assembly.





The C1100 copper fins-made of 99.9% pure red copper-boast exceptional thermal conductivity (390 W/m·K), enabling rapid absorption and conduction of heat from high-power electronic components. The aluminum substrate, with its lightweight and excellent mechanical strength, reduces the overall weight of the heatsink while ensuring structural stability, making it suitable for weight-sensitive applications. To enhance corrosion resistance, solderability, and electrical conductivity, the heatsink undergoes professional nickel plating treatment on the surface, forming a dense, uniform nickel layer that effectively prevents oxidation and corrosion.



Additionally, the tin soldering process ensures firm bonding between copper fins and aluminum substrate, eliminating thermal resistance gaps and ensuring efficient heat transfer from fins to substrate. As an origin factory, we implement strict quality inspection at every production stage, from raw material selection to nickel plating, tin soldering, and final assembly, ensuring each product meets international standards and client requirements. We also offer flexible customization for fin density, size, nickel plating thickness, and tin soldering specifications, fully adapting to your unique application scenarios.









C1100 Copper Fin & Aluminum Substrate Composite Design:

The combination of 99.9% pure C1100 copper fins (superior thermal conductivity) and 6063-T6 aluminum substrate (lightweight, cost-effective) achieves an optimal balance of thermal performance and cost. Compared to full-copper heatsinks, it reduces material costs by 30% while maintaining 85%+ of the thermal efficiency; compared to full-aluminum heatsinks, it improves thermal conductivity by 40%, effectively solving the heat dissipation problem of medium-high power electronic components.



Professional Nickel Plating for Enhanced Performance:

The entire heatsink surface undergoes strict nickel plating treatment, forming a dense, uniform nickel layer that enhances corrosion resistance (passing 1000+ hours salt spray test), prevents oxidation, and improves electrical conductivity. The nickel plating layer also enhances the heatsink's solderability and wear resistance, ensuring stable performance in humid, corrosive industrial environments and extending product service life.



High-Quality Tin Soldering for Zero Thermal Resistance:

We adopt advanced tin soldering technology to bond copper fins and aluminum substrate firmly, eliminating gaps between the two materials and avoiding thermal resistance caused by poor bonding. The high-temperature tin solder ensures strong bonding strength (shear strength ≥15 MPa), with no risk of detachment even in high-vibration or high-temperature environments, ensuring efficient heat transfer from fins to substrate.





Origin Factory Strict Quality Assurance:

As the direct production factory, we implement a full-cycle quality control system-from raw material inspection (copper and aluminum purity testing) to nickel plating thickness detection, tin soldering quality inspection, and final thermal performance testing. All products adhere to ISO 9001:2015, IATF 16949, and RoHS standards, with 100% inspection before delivery to ensure consistent quality and reliability.



Flexible Customization for Diverse Needs:

We provide comprehensive customization services, including copper fin density, fin shape, substrate size, nickel plating thickness, and tin soldering specifications. Our engineering team uses thermal simulation software to optimize the composite structure design, ensuring the heatsink perfectly matches your thermal load, installation space, and assembly requirements. We support small-batch (MOQ ≥3 pieces) and mass production, adapting to both prototype development and bulk procurement.



Cost-Effective & Stable Supply:

As the origin factory, we integrate raw material procurement, copper fin processing, aluminum substrate machining, nickel plating, tin soldering, and quality inspection into one production line, eliminating intermediate distributors and offering competitive ex-factory prices. We maintain stable raw material supply chains and flexible production lines, ensuring on-time delivery (5-8 days for prototypes, 18-25 days for mass production) to meet your project deadlines.





Our C1100 Copper Fin Aluminum Heatsink, with nickel plating and tin soldering processes, is widely used in various electronic devices and industrial scenarios, leveraging its composite material advantages, reliable bonding performance, and strict quality assurance to serve global B2B clients. Key applications include:



Automotive Electronics: On-board chargers, in-vehicle control modules, LED headlights, and power inverters. The lightweight composite design, corrosion resistance (nickel plating), and strong bonding (tin soldering) meet the strict requirements of automotive environments, withstanding temperature fluctuations and vibration.



Industrial Control Equipment: IGBT modules, frequency converters, PLC controllers, and industrial power supplies. The high thermal efficiency of C1100 copper fins and corrosion resistance of nickel plating ensure stable operation in high-temperature, dusty industrial workshops, reducing equipment failure rates.



Consumer Electronics: High-performance power adapters, LED drivers, gaming console power supplies, and laptop cooling modules. The cost-effective composite design and compact structure make it suitable for small electronic devices, ensuring efficient heat dissipation and extended product service life.



Precision Instruments & Medical Equipment: Laboratory testing instruments, medical imaging devices, and diagnostic equipment. The high precision, stable thermal performance, and nickel plating anti-corrosion feature meet the strict requirements of precision and medical environments.



Communication & Network Equipment: 5G communication modules, server power supplies, and network switches. The efficient heat dissipation and reliable bonding ensure stable operation of communication equipment, maintaining signal transmission quality.



Renewable Energy Equipment: Solar inverters, wind turbine control modules, and energy storage device cooling systems. The corrosion resistance (nickel plating) and durable tin soldering bonding make it suitable for outdoor renewable energy applications, withstanding harsh weather conditions.





As the origin factory, we adhere to a standardized, professional production process, focusing on every detail from raw material selection to finished product delivery, ensuring the quality and performance of each C1100 Copper Fin Aluminum Heatsink. The key production steps, highlighting nickel plating and tin soldering processes, are as follows:



Raw Material Selection & Strict Inspection:

We select high-purity C1100 red copper sheets (99.9% pure) and 6063-T6 aluminum alloy sheets, conducting strict testing for thermal conductivity, purity, and mechanical strength. Unqualified raw materials are rejected to ensure the foundation of product quality.



Copper Fin & Aluminum Substrate Machining:

The C1100 copper sheets are cut and formed into fins of specified thickness and density using precision cutting equipment. The aluminum sheets are machined into substrates with required size and flatness through CNC milling, ensuring the bonding surface is smooth and clean for subsequent tin soldering.



Pre-Treatment for Plating & Soldering:

The copper fins and aluminum substrate undergo degreasing, pickling, and activation treatments to remove surface oil, oxide, and impurities. This step ensures good adhesion of nickel plating and tin soldering, preventing bonding failure and oxidation.



Professional Nickel Plating Process:

The pre-treated heatsink components are placed in an automated nickel plating tank, with precise control of plating temperature, current, and time to form a uniform, dense nickel layer (2-5 μm). After plating, we conduct thickness detection and adhesion testing to ensure the nickel layer meets standard requirements.



High-Precision Tin Soldering:

The nickel-plated copper fins and aluminum substrate are bonded using high-temperature tin solder (Sn63/Pb37 or lead-free solder) through automated soldering equipment. The soldering temperature and time are precisely controlled to ensure firm bonding, zero gaps, and no solder overflow, eliminating thermal resistance.



Post-Soldering Finishing & Inspection:

After soldering, the heatsink undergoes trimming, polishing, and cleaning to remove burrs and excess solder. We then conduct comprehensive quality inspection, including dimensional measurement (3D laser scanning), thermal conductivity testing, nickel plating thickness detection, tin soldering bonding strength testing, and corrosion resistance testing.



Packaging & Factory Direct Delivery:

The qualified heatsinks are packaged in anti-oxidation, shock-proof packaging to prevent damage and oxidation during transportation. As the origin factory, we cooperate with global logistics partners to provide door-to-door delivery services, ensuring on-time arrival and reducing your procurement costs.





As the origin factory specializing in C1100 copper fin aluminum heatsinks with nickel plating and tin soldering, we stand out from competitors with our professional technology, strict quality control, and client-centric service. Here are our core advantages that win the trust of global B2B clients:



Origin Factory Advantage & Cost-Effectiveness:

As the direct production factory, we eliminate intermediate distributors, offering competitive ex-factory prices. We integrate the entire production chain, from raw material procurement to finished product delivery, reducing production costs while ensuring quality control.



Mature Nickel Plating & Tin Soldering Technology:

We have 20+ years of experience in plating and soldering processes, with advanced automated equipment and professional technical teams. Our nickel plating ensures uniform thickness and strong corrosion resistance, while tin soldering guarantees firm bonding and zero thermal resistance, solving common problems of poor bonding and oxidation.





Strict Quality Assurance System:

We implement full-cycle quality control, from raw material inspection to final product testing, adhering to ISO 9001:2015, IATF 16949, and RoHS standards. All products undergo 100% inspection, with professional testing equipment to verify thermal performance, plating quality, and soldering strength.



Flexible Customization & Technical Support:

Our engineering team provides one-stop customization services, optimizing the composite structure, nickel plating, and tin soldering specifications based on your thermal load and application needs. We offer 24/7 technical support, including design optimization, thermal simulation, and installation guidance.



Stable Supply & On-Time Delivery:

We maintain stable raw material supply chains and flexible production lines, supporting small-batch and mass production. Our professional production management team ensures on-time delivery, with 5-8 days for prototypes and 18-25 days for mass production, meeting your project deadlines.



Contact Us

If you are looking for a high-quality C1100 copper fin aluminum heatsink with nickel plating and tin soldering, or need a custom thermal management solution, contact our origin factory team today. We will provide you with professional advice, competitive ex-factory prices, and strict quality assurance, helping you solve your thermal management challenges efficiently.



Email: general@zp-aluminum.com
